実験設備 / Experimental Facility
大型境界層風洞 | 温度成層風洞 | 密度成層水槽 |
Boundary Layer Wind Tunnel (BLWT) | Thermally Stratified Wind Tunnel (TSWT) | Density Stratified Water Tank (DSWT) |
![equipment](images/equipment/Facilities.png?20240712101256_vU9sq2p)

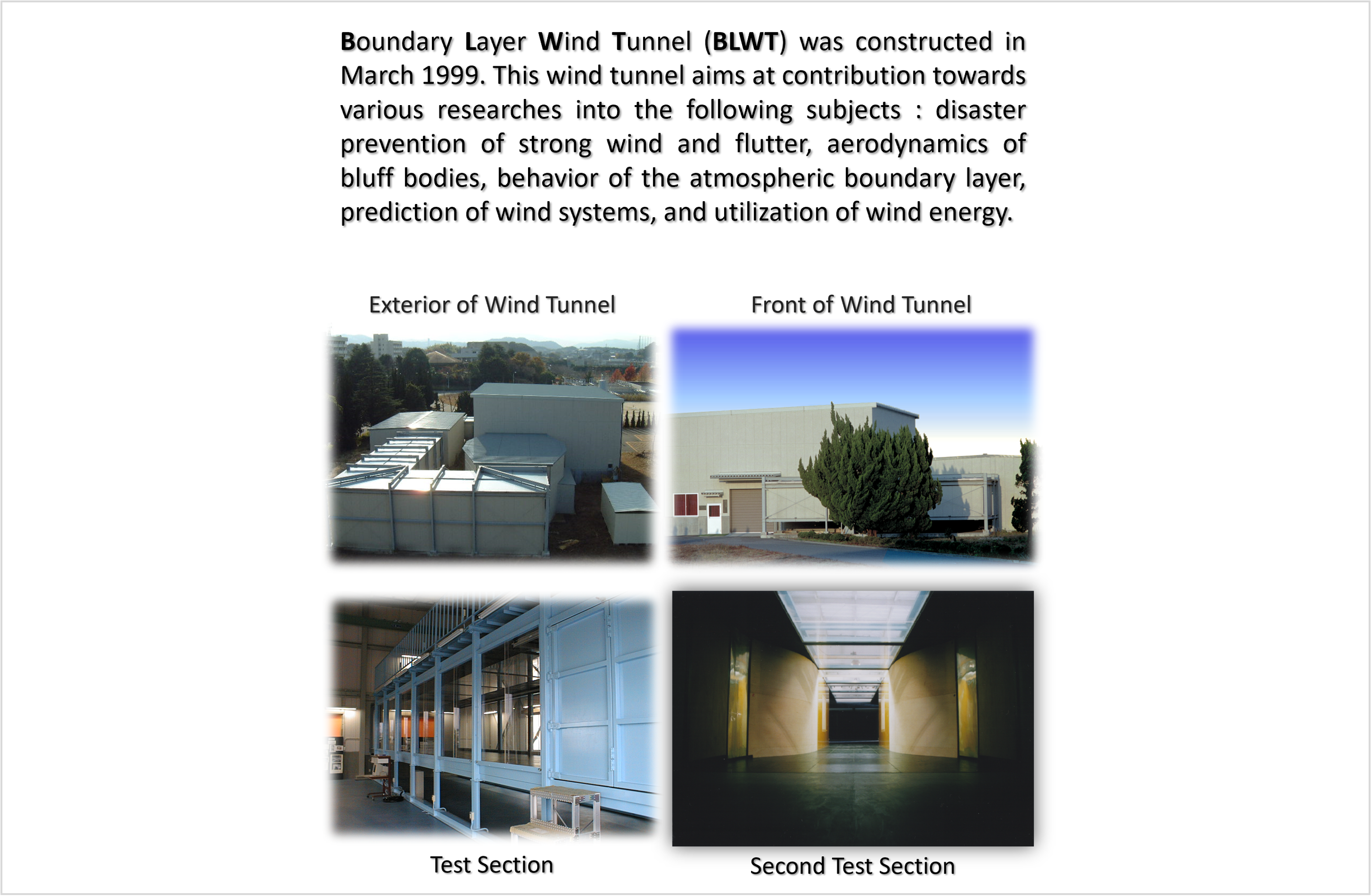

Boundary Layer Wind Tunnel (BLWT); 1999.03~
![BLWT1](images/equipment/BLWT-1.png?20240712101256_vU9sq2p)
![BLWT2](images/equipment/exp2.png?20240712101256_vU9sq2p)
Specifications | |
---|---|
Type | Close Circuit |
Test Section Wind Speed |
15.0[m]long×3.6[m]wide×2.0[m]high 0 to 30[m/s] |
Second Test Section Wind Speed |
3.0[m]long×1.8[m]wide×2.0[m]high 0 to 60[m/s] |
Probe Carriage Systems | X-direction 15.0[m], Y-direction 3.0[m], Z-direction 1.2[m] (Controllable from Software) |
Examples

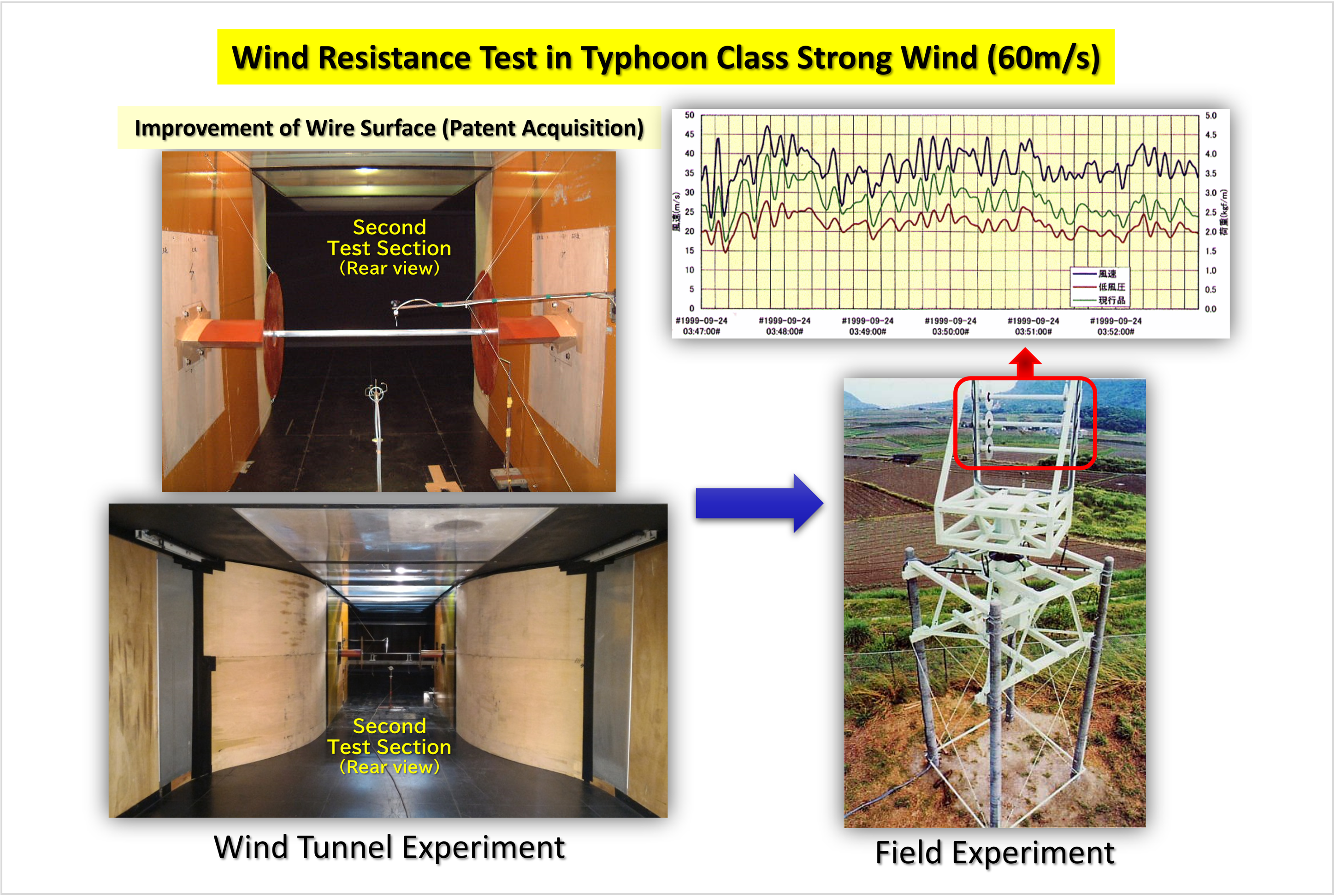

Develpment of low drag electric power cables
![](images/equipment/densen-en.png?20240712101256_vU9sq2p)

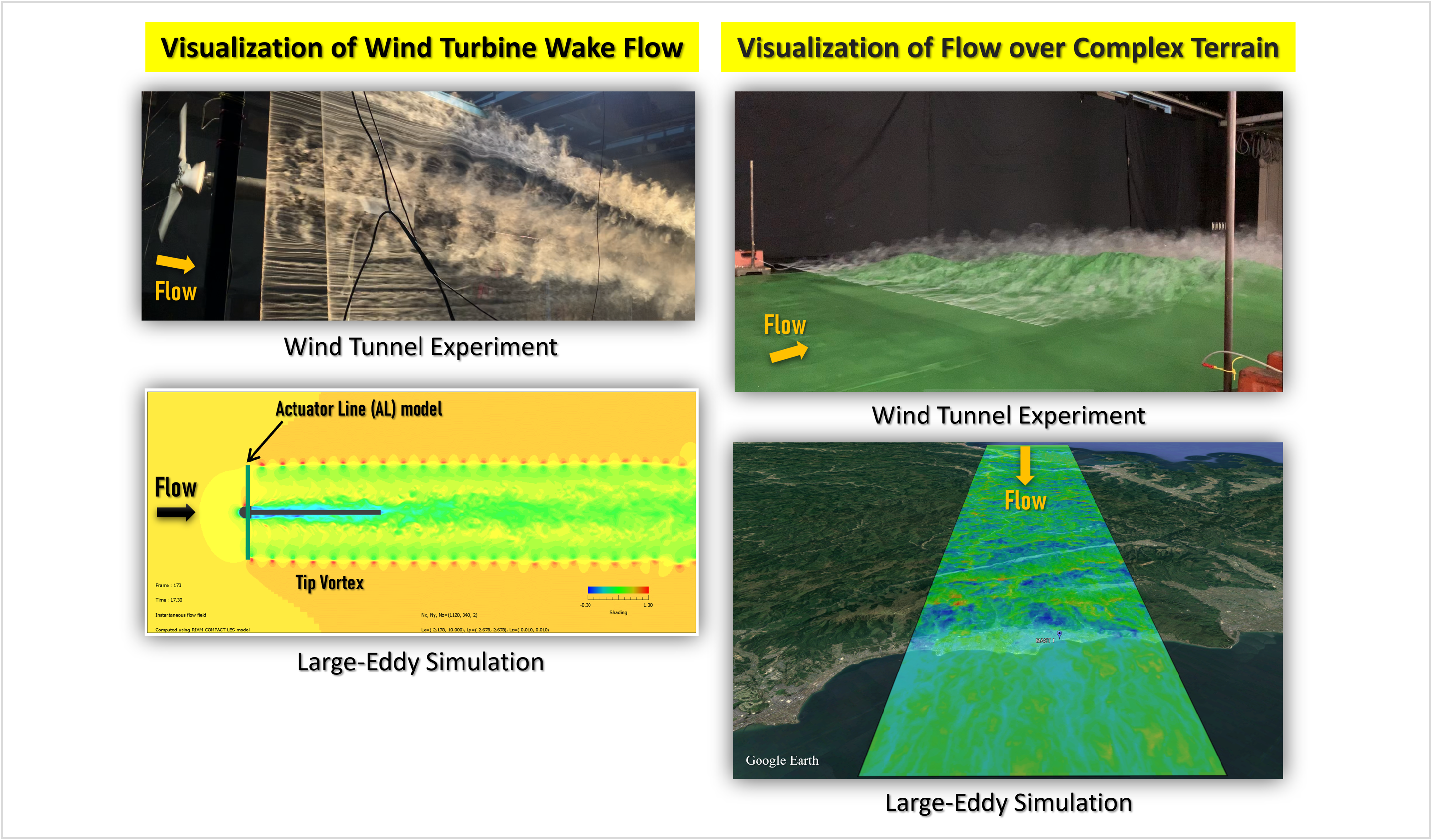

Assessment of wind environments
![](images/equipment/kaze2-en.png?20240712101256_vU9sq2p)

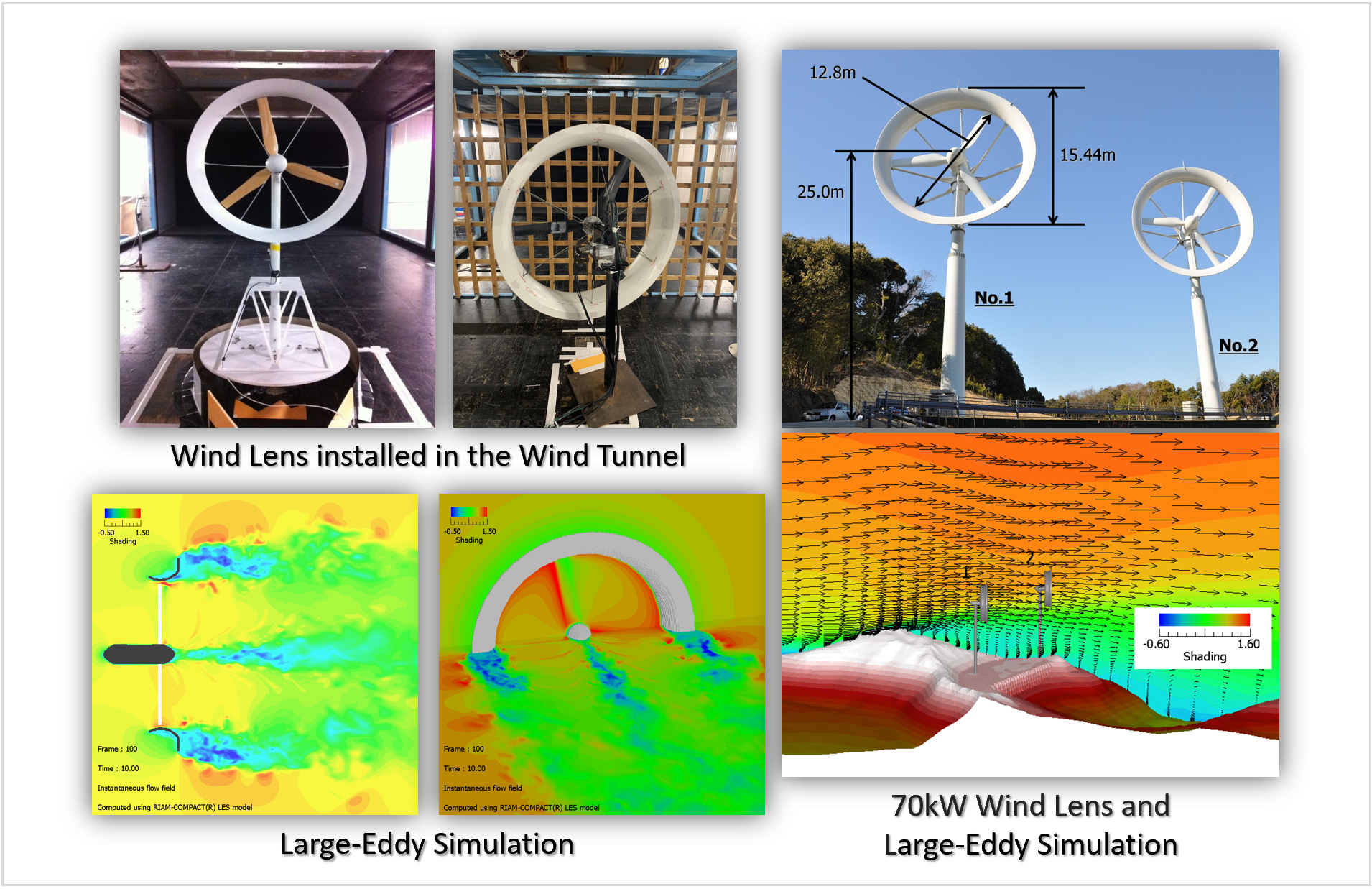

Improvement of wind turbine efficiency
![](images/equipment/windlens-en.png?20240712101256_vU9sq2p)
Research and development of eco-ship
![](images/equipment/ecoship.png?20240712101256_vU9sq2p)
